Description

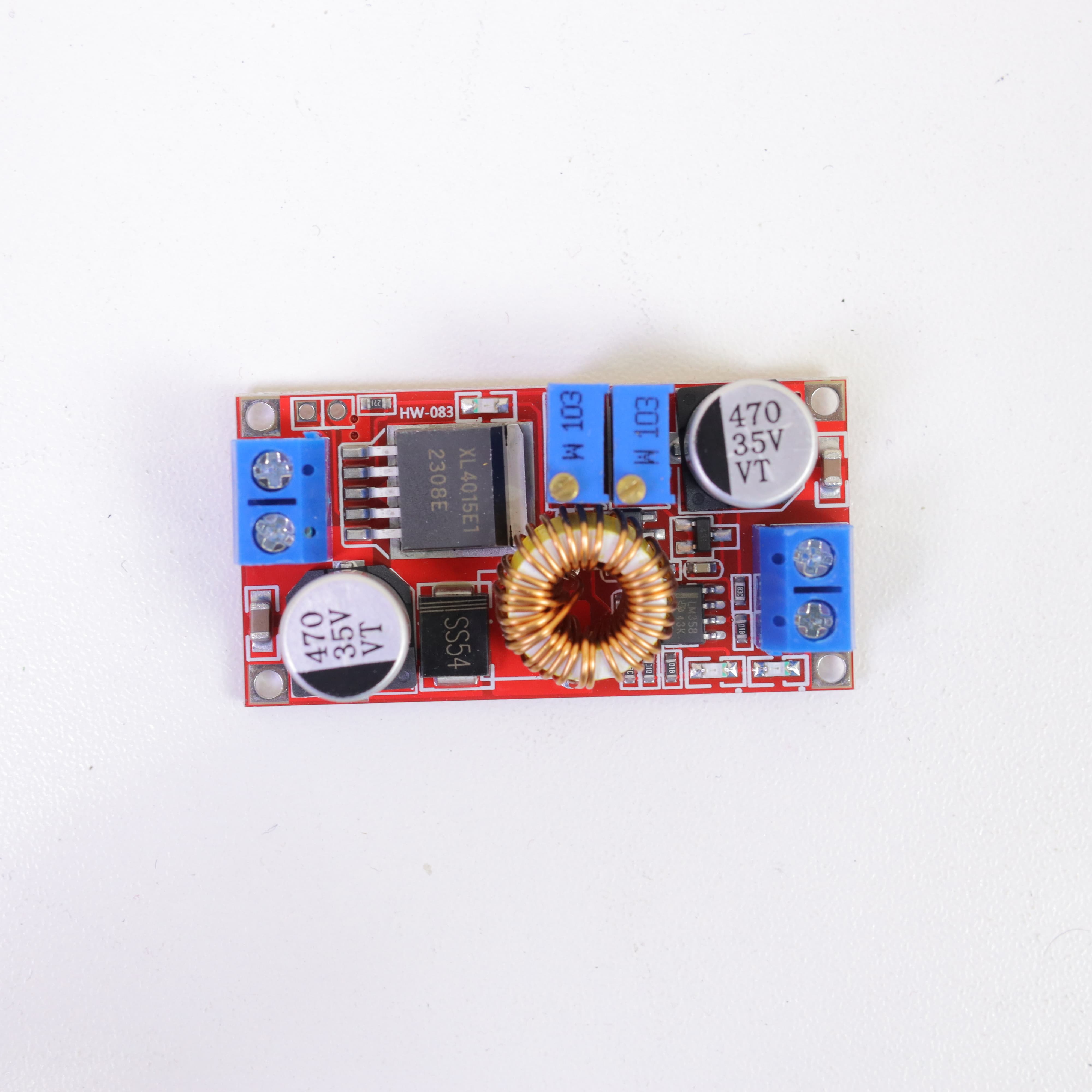

The XL4015 DC-DC Step-Down (Buck) Converter Module is a high-power, high-efficiency voltage regulator that can step down an input voltage from 8V to 36V to an adjustable 1.25V to 32V output with a maximum current of 5A.
This module supports both Constant Voltage (CV) and Constant Current (CC) modes, making it ideal for Lithium battery charging, LED power supply, and various DC electronics projects.
With a built-in XL4015 IC, this step-down regulator offers high efficiency (up to 96%), excellent heat dissipation, and overcurrent protection, ensuring stable and reliable operation.
Technical Specifications:
| Input Voltage | 8V - 36V DC |
| Output Voltage | 1.25V - 32V DC (Adjustable) |
| Output Current | Max 5A (Adjustable) |
| Output Power | 75W (Peak: 100W with Heat Sink) |
| Efficiency | Up to 96% |
| Working Frequency | 180 kHz |
| Voltage Regulation | ±1% |
| Load Regulation | ±0.5% |
| Operating Temperature | -40°C to +85°C |
| Short Circuit Protection | Yes |
| Cooling | Heat Sink Included |
| Module Dimensions | 54mm x 23mm x 15mm |
| Weight | 15g |
Key Features:
✔ Adjustable Output Voltage & Current – Suitable for charging batteries, LED power supplies, and more.
✔ High Efficiency – Up to 96% power conversion efficiency for minimal heat loss.
✔ Constant Voltage (CV) & Constant Current (CC) Mode – Ideal for Lithium battery charging and LED drivers.
✔ Built-in Protection Circuit – Prevents overcurrent, short circuit, and overheating.
✔ Compact & Durable Design – Comes with a heat sink for better heat dissipation.
✔ Wide Compatibility – Works with Lithium batteries, LEDs, motors, and Arduino projects.
Applications:
🔹 Lithium Battery Charger – Perfect for charging 18650 Li-ion and other lithium batteries.
🔹 LED Driver Power Supply – Provides stable voltage for high-power LED lights.
🔹 Arduino & IoT Projects – Regulate voltage for microcontrollers and embedded systems.
🔹 DIY Adjustable Power Supply – Create a custom DC power solution for various electronics.
🔹 Motor Speed Control – Supplies stable power to DC motors and robotics.
